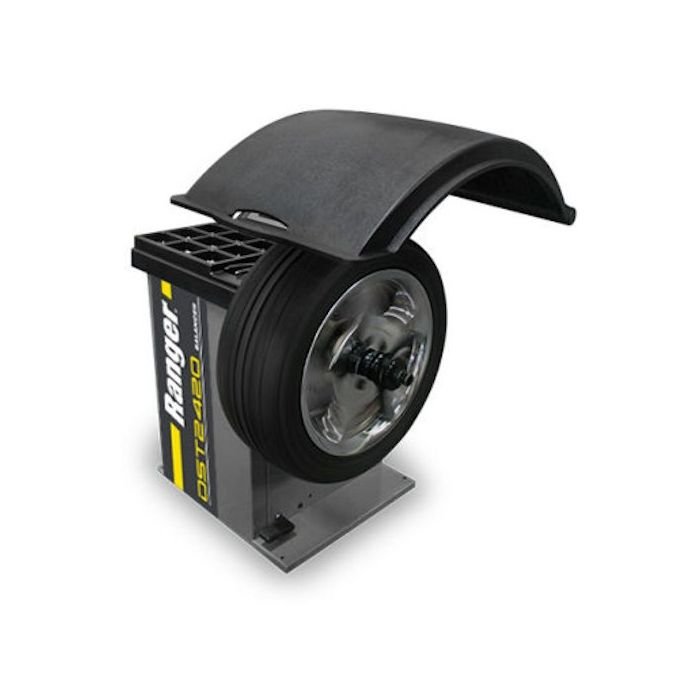

Ranger DST-2420 Dynamic Wheel Balancer 40mm Shaft
30″ Maximum Wheel Diameter Capacity
Extreme Accuracy, Speed & Reliability in a Wheel Balancer
The Ranger DST-2420 wheel balancer handles wheels up to a 30†diameter. It is a highly accurate and dependable noâ€frills balancer that features our proprietary Digital Sensor Technology for critical reliability and repeatability. From one-bay shops to high-volume tire stores, the DST-2420 is built with a gritty toughness that puts out perfectly balanced wheels day after day, around the clock. Like all of our DST Series wheel balancers, it’s a zero tolerance performer that features our proven Direct-Axis drive system, accurate to within hundredths of an ounce, ensuring wheels are balanced vibration-free.
Planning on balancing truck and SUV tires? We highly recommend purchasing the Truck Cone Kit
The DST-2420 automatically calculates the exact weight needed to achieve an optimal balance for almost every tire and wheel configuration on the planet, as well as brightly displayed LEDs that mark the exact amount and location in just six seconds. A full menu of time-saving features, including Dynamic, Static, and Performance Alloy settings, allows you to balance OEM wheel configurations and performance wheels with minimal effort and speed.
Highly precise digital sensor technology
Our highly accurate Digital Sensor Technology features a 16-digit digital signal processor and single-chip technology that increases productivity and offers unprecedented speed and accuracy—especially when using sophisticated balance and weight placement techniques required for newer high-tech OEM and aftermarket wheels.
Single-chip circuit board architecture provides an inherent performance and reliability advantage compared to multi-chip implementations of the same functionality. In addition to overall latency reductions, the single-chip architecture significantly boosts device throughput. An extremely fast and dedicated hyper transport protocol allows data to communicate with the micro-processor at much faster speeds. This solution offers unmatched integration of features and functionality and results in both lower power consumption and dissipated heat.
Multi-directional quartz piezoelectric load sensors
Dual-component piezoelectric quartz load sensors and digital rotation encoder measure longitudinal, transversal and shear effects for multi-directional force unbalance detection. The piezoelectric force sensors are the most sensitive sensors we have ever made, offering superior stability and fatigue resistance for unlimited service life with your wheel balancer. The high-rigidity quartz crystal sensors offer high frequency detection in all three measured directions.
Quick and precise setup
Multi-size center cones and a full rubber perimeter no-mar “Quick-Nut†bell adapter makes mounting wheels fast and easy and minimizes the risk of costly wheel damage.
Mounting cone package
The DST-2420 tooling package not only includes our standard car and light truck cones, but a heavy-duty truck cone. This well-equipped package includes three automotive and light truck cones: 1.75†– 2.75â€, 2.75†– 3.50†and 3.50†– 4.25â€, as well as one truck cone 4.50†– 5.00â€.
Tape weight feeder
Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peelâ„¢ adhesive tape weight. These weights are sold separately in convenient bulk rolls.
Automatic weight optimization
The DST-2420 automatically calculates the minimum amount of weight needed to achieve an optimal balance for the tire and wheel configuration, so you use less weight. This adds up to real savings and increases your bottom line.
User-friendly operation

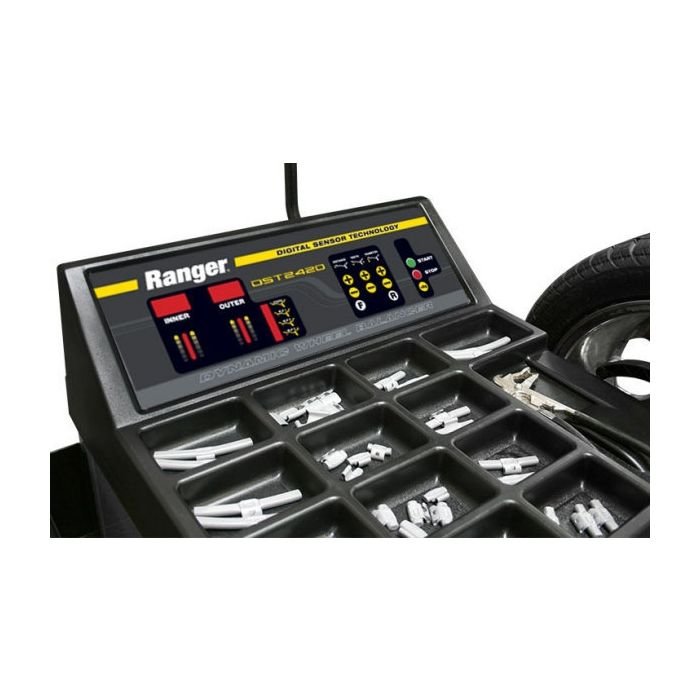

A touch-pad display panel features tire and wheel assembly graphics to help simplify speed entry of wheel data and guide technicians through balancing procedures. Operator function keys are labeled with simple, easy-to-read icons to help operators identify and command all balancing functions.
LED rolling wheel weight displays
Bright LED weight placement indicators show weight positions as the wheel is gently rolled to exact top-dead-center. Tiered weight placement indicators help identify out-of-sight weight placement such as split-weight or hidden “behind-the-spoke†techniques. Aids with clip-on and tape weight placement at precise locations for zero-on balancing every time.
Wheel weight starter kit
A free kit of wheel weights is included with DST2420 and DST64 wheel balancers. Each unit’s starter kit contains one bulk roll of 100 silver adhesive steel tape weights, one bulk roll of 100 black adhesive steel tape weights and one starter box of mixed clip-on steel weights. It’s our way of getting you off on the right foot. Additional Ranger wheel weights are available for purchase at any time.
Features and Specs
Features
- Dynamic, Static, and Performance Alloy settings
- A multi-user save function holds presets to increase productivity
- An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
- A simultaneous retrieval of static, dynamic and ALU1ALU2ALU3 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
- Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
- Low RPM balancing speed and rapid six-second cycle time
- Automatic braking
- Gram/ounce selection and millimeter/inch selection
- Automatic round-off with top-dead-center weight position indicator
- Tiered weight placement indicators help identify out-of-sight position weight placement such as split-weight or hidden “behind-the-spoke” techniques
- Manual or automatic start when hood is lowered
- Self-calibration function
- High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
- Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel adhesive tape weight convenient bulk rolls
- Precision-machined, hardened-steel 40mm shaft
- Quick-release hub nut for dramatically reduced set-up times
- Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
- Side cone storage pegs keeps accessories readily available
- New “open-side” hood design allows for a broader coverage of tire shapes and sizes
Specifications
- Style: Auto & Light Truck
- Data Entry: Manual
- Motor: 1.5 HP, 110V / 220V, 50 / 60 Hz, 1Ph
- Working Temperature: -5°C / 27°F – 50°C / 82°F
- Cycle Time: 6 – 9 Seconds (avg.)
- Balancing Modes: Dynamic / Static / 3-Alloy
- Drive System: Belt Drive
- Wheel Braking: Automatic / Electronic
- Cones Included: 3 Standard / 1 Truck
- Max. Tire Diameter: 47″ (1,194 mm)
- Max. Tire Weight: 145 lbs. (65 kg)
- Wheel Diameter Capacity: 10″ – 30″ (254 – 672 mm)
- Wheel Width Capacity: 2″ – 18″ (51 – 457 mm)
- Balancing Increments: 0.25 or 0.01 oz
- Balancing Speed: 180 RPM
- Accuracy: +/- 1 gram (.035 oz)
- Resolution: 0.01 ounce, 1.4°
- Shipping Weight: 398 lbs. (181 kg)
- Warranty: Warranty: (2) Years Structure, (1) Year Components, (1) Year Labor, (1) Year Shipping
