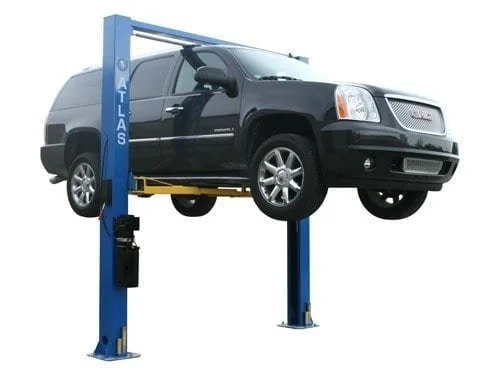

The Atlas® 9OHSC two post above ground lift is the perfect choice for those smaller commercial repair facilities
- 9,000 lb. Capacity
- Overhead, Open-Floor Lift
- Single-Piece Column Design
- Overall Height: 142″ (11′ 10″)
- 3-Stage Front Arms/2-Stage Rear Arms
- Automatic Arm Restraints
- Single-Point Lock Release
- Rubber Guards on Carriages
- Dual Hydraulic Chain-Drive Cylinders
- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included
- Shipping Weight: 1,430 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty
| Atlas® ATTD-9OHSC-SS Specifications | ||
| Capacity | 9,000 LB. | |

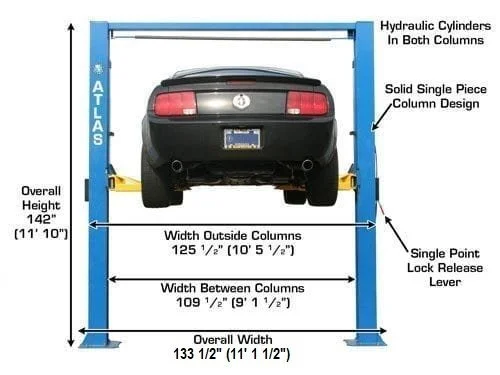

| Overall Height | 142″ (11’ 10″) | |
| Overall Floor Width | 133 1/2″ (11’ 1 1/2″) | |
| Outside Column to Outside Column | 125 1/2″ (10’ 5 1/2″) | |

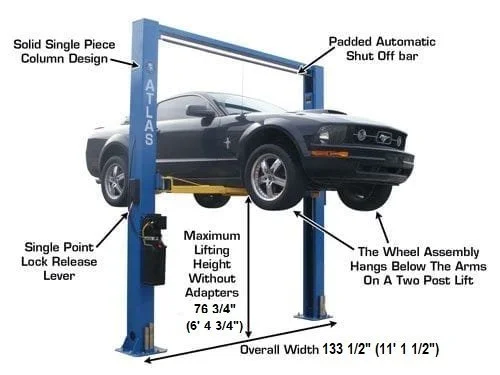

| Maximum Lift Height (Without Adapters) | 76 3/4″ | |

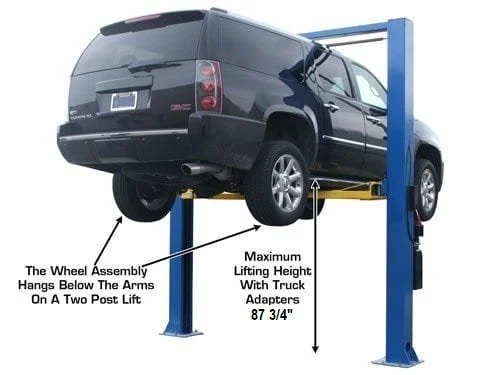

| Maximum Lift Height (With Adapters) | 87 3/4″ | |
| Minimum Arm Height | 4″ | |
| Inside Column | 109 1/2†(9’ 1 1/2â€) | |
| Drive Thru | 100 1/2†(8’ 4 1/2â€) | |
| Column Size | 8″ x 9 3/8″ | |
| Column Thickness of Steel | 5mm | |
| Base Of Lift | 16 3/4″ x 17 3/4″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 | |
| Shipping Weight | 1,430 LBS. | |
| Adapter Heights | 4 Each 2â€, 3â€, 6†| |
| Arm Hole/Adapter Peg Size | 1.5†| |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||
