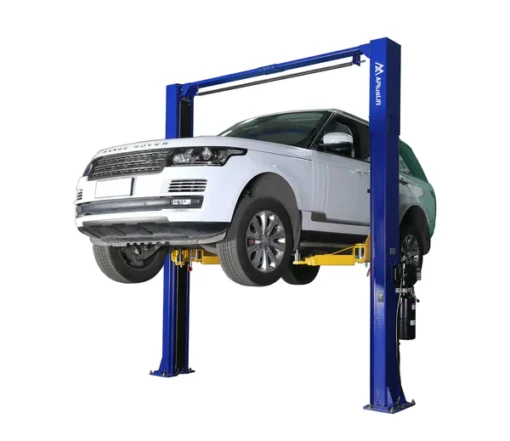

APlusLift 10000 LB 2-Post Overhead Heavy Duty Car Lift

APlusLift HW-10KOH is one of most affortable overhead car lift (auto hoist) with 10000 LB capacity and strong double “Sâ€ columns.

Specifications

• Overall Height: 143 3/16″
• Overall Width: 134 5/16″
• Lifting height without Truck Adapters: 75″
• Lifting height with Truck Adapters: 81″
• Minimum Height of Arm Top: 4.5″
• Drive Through Width (Carriage to Carriage): 100″
• Column to Column Width: 109″
• Column Cross Section: 11″L x 7″W
• Driving Mode: Dual hydraulic cylinders, chain drive
• Motor: 220V Single Phase 3HP (need a 30A breaker)
• Hydraulic Oil: 3-5 gallons AW32/AW46
• Time to full rise: 50 sec

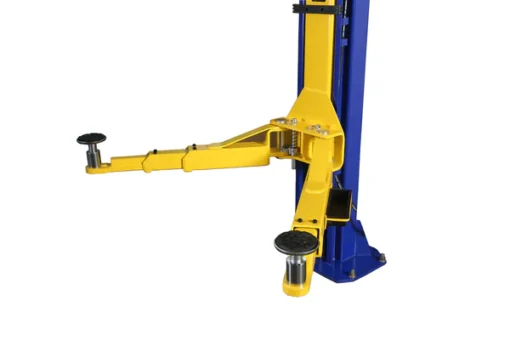

• Combo (Symmetrical and Asymmetrical) Arm Assembly

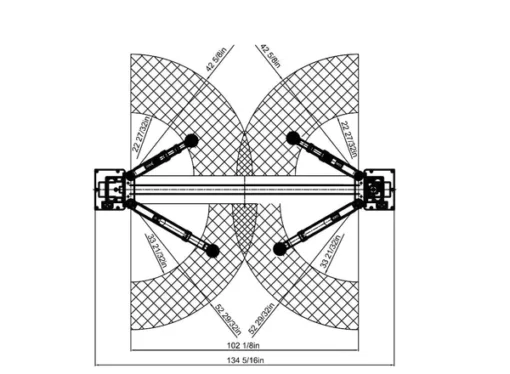

• Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
• Rear 2 Stage reach from 33 5/8″ to 52 7/8″

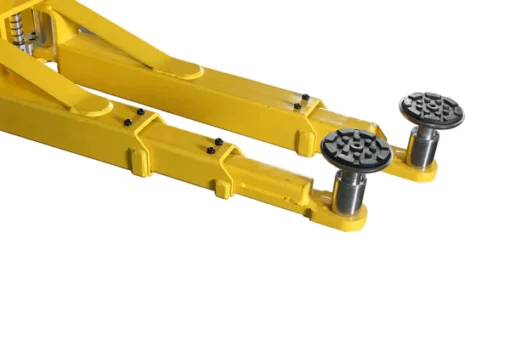

• Adjustable Screw Pads 4 pieces included
• Truck adapters 4 pieces included

• Concrete Requirement: 6″ at 3500psi (4″ for vehicles 9000LB and below)
• Anchor bolts, tool trays, and toe guards included

• Column Steel Thickness: 13/64″
• Carriage Steel Thickness: 15/64″
• Arm Steel Thickness: 15/64″

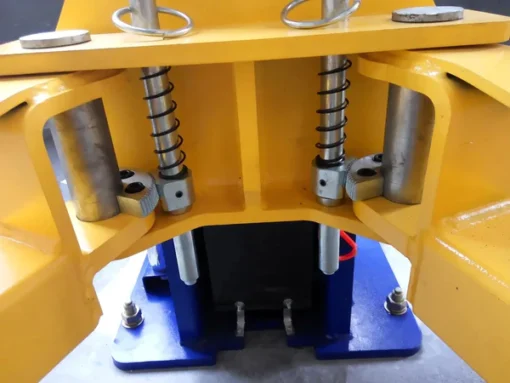

• Carriage Yoke Thickness: 5/16″
• Base Plate Steel Thickness: 5/8″
